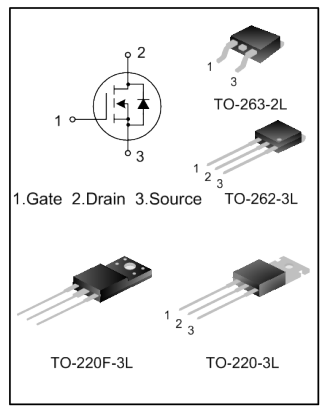

12A, 600V N-CHANNEL MOSFET

                                                                Product：SVF12N60T/F/S/K

一、General Description

SVF12N60T/F/S/K  is  an   N-channel  enhancement  mode  power MOS   field   effect   transistor   which    is   produced   using   Silan proprietary  F-CellTMstructure  VDMOS  technology.  The  improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide superior switching  performance,  and  withstand  high  energy  pulse  in  the avalanche and commutation mode.

These devices are widely used in AC-DC power suppliers, DC-DC converters and H-bridge PWM motor drivers.

二、 Features

12A,600V,RDS(on)(typ)=0.58Ω@VGS=10V
Low gate charge
Low Crss
Fast switching
Improved dv/dt capability

三、NOMENCLATURE

四、ORDERING INFORMATION

五、Package/Order Information
