High Precision CC/CV Primary-Side Controller

                                                              Product：PN8232

一、General Description

The PN8232 is a high precision CC/CV primary side controller, specifically designed for a high performance low power AC/DCcharger and LED lighting with minimal external components. PN8232 operates in primary-side sensing and regulation, soopto-coupler and TL431 could be eliminated. PN8232 offers complete protection coverage with automatic self-recovery featureincluding Cycle-by-Cycle current limiting protection (OCP), over voltage protection (OVP) and feedback loop open protection(OLP), over temperature protection (OTP) and short circuit protection etc. In CC control, the current and output power setting canbe adjusted externally by the sense resistor Rcs at CS pin. In CV control, PFM operations are utilized to achieve high performanceand high efficiency. In addition, good load regulation is achieved by the built-in cable drop compensation.

二、 Features

  ±5% Constant current Regulation at Universal AC input
 Primary-side Sensing and Regulation Without TL431 andOpt coupler
  Programmable CV and CC Regulation
  Programmable Cable Drop Compensation
  Built-in Primary winding inductance compensation
  Audio Noise Free
  Excellent Protection Coverage:
        Over Temperature Protection (OTP)
        VDD Under Voltage Lockout (UVLO)
        Cycle-by-Cycle Current Limiting (OCP)
        Open Loop Protection (OLP)
        VDD Over Voltage Protection (OVP)
        Auto- recovery protection Mode

三、Applications

   Switch AC/DC Adaptor and Battery Charger
    STB Power Supply
    LED Lighting

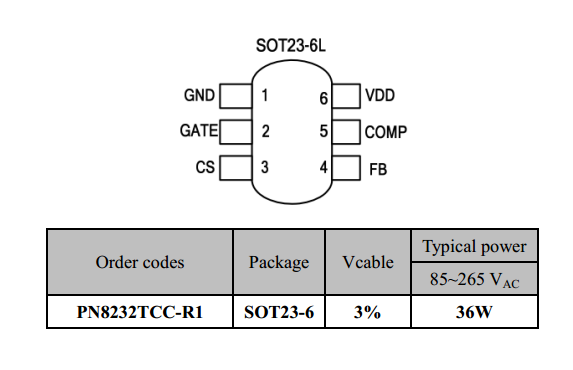

四、Package/Order Information

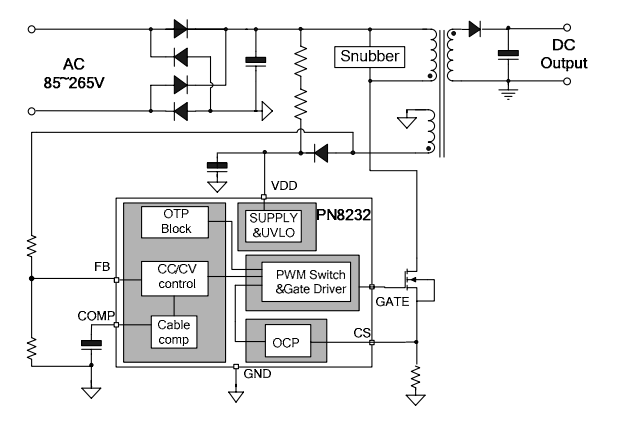

五、Typical Application
