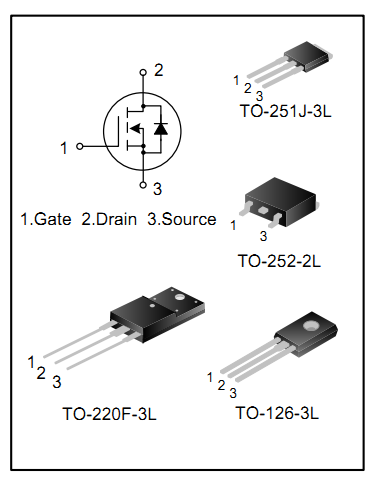

2A, 650V N-CHANNEL MOSFET
Product：SVF2N65F/N/MJ/D
1、GENERAL DESCRIPTION
SVF2N65F/N/MJ/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology.The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are widely used in AC-DC power suppliers, DC-DC converters and H-bridge PWM motor drivers.
2、FEATURES
1、2A,650V, RDS(on)(typ.)=4.3@VGS=10V
Low gate charge
2、Low Crss
3、Fast switching
4、Improved dv/dt capability

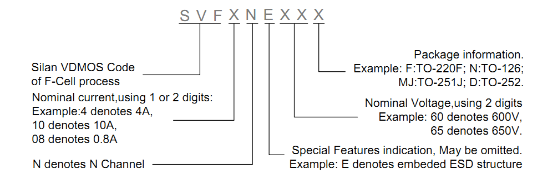

3、NOMENCLATURE

4、ORDERING INFORMATION

5、ORDERING INFORMATION

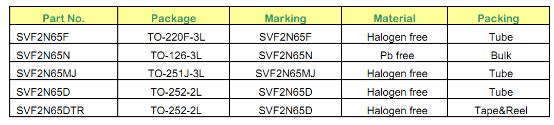

6、Package/Order Information
