Buck Single Stage PFC Converter with constant current for LED Driver

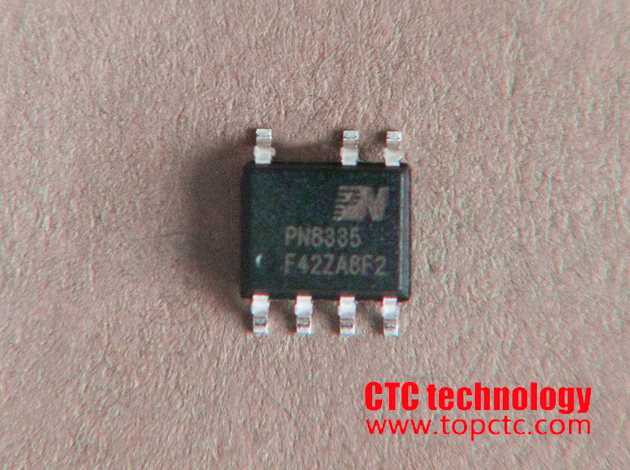

Product：PN8335

一、General Description

The PN8335 is a non-isolated buck converter for LED driver with active power factor correction with a 500V avalanche-rugged powerMOSFET, and HV Start circuit. The PN8335 operates in the quasi-resonant mode to achieve high efficiency and reduce the powerMOSFET switching loss. With constant on time, high power factor is achieved. PN8335 offers various protections includingcycle-by-cycle over current limiting (OCP), over voltage protection with latch (OVP), short circuit protection (SCP), and overtemperature correction (OTC), etc, to improve system performance.

二、 Features

  Integrated 500V avalanche-rugged power MOSFET

  Integrated HV Start Circuit

  Quasi-resonant operation

  High precision LED current

  Single-stage Power Factor Correction

  Compact BOM non-isolated Frame

  Low operation current

  Excellent EMI performance

  Good Protection Coverage With

       over temperature correction (OTC)

        over current limiting (OCP)

        Under-voltage lockout (UVLO) protection
 LED open and short circuit protection

三、Applications

    LED Tube lamp

    LED PAR lamp

    LED Panel lighting

四、Package/Order Information

五、Typical Application
